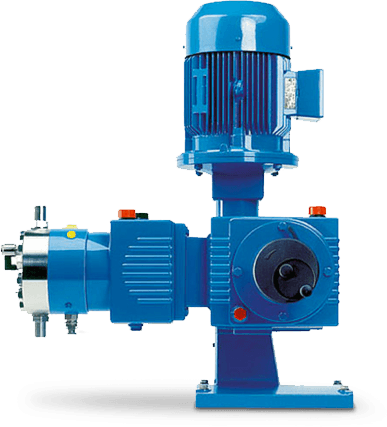

LEWA EcoFlow Diaphragm Metering Pump

Brands
LEWA
Industry Standard
API 675

LEWA ecoflow is an extensive modular system for diaphragm and packed plunger metering pumps. It combines seven drive sizes with six different pump heads. Your expectation is our expectation – with this modular system, its many options, and our special solutions, we can meet even the toughest of customer requirements. LEWA ecoflow is considered the most advanced metering pump product line in the world and is constantly being refined and undergoing further development.

Flow Rate  211.3 to 5,019 gph per pump head
Max Discharge Pressure  5,070 to 17,400 PSIG
Temperature   -94 to 752°F
Materials
  • Stainless steel 316/316L
  • Material options of different metals and plastics are possible.
Optional Features
  • Integration of the pump into the process control system for control and status monitoring
  • Diagnostic connection for the online readout of measurement data from the pump head and drive
  • Diaphragm monitoring systems to spec with pressure switches, manometers, contact manometers
  • Special materials by customer request, for example 2.4610, titanium, plastics
  • Diverse connection geometries
  • CIP and SIP capability
  • Hygienic design
  • Heating and cooling jacket
  • Fully heated pump heads (including valves) for melting
  • Remote head design for extreme temperatures
