Summit 2196 Series Pumps

Brands

Industry Standard

Summit 2196 pumps and parts are ANSI/ASME B73.1 compliant and will drop in place of existing ANSI/ASME B73.1 pumps and parts. Variations of the 2196 are 2196R the (Recessed) and 2196LF (low flow high head). These options all utilize the same dry end components and are available in the newly released Forever Frame style.

Ask an Expert

	Standard Features	Optional Features

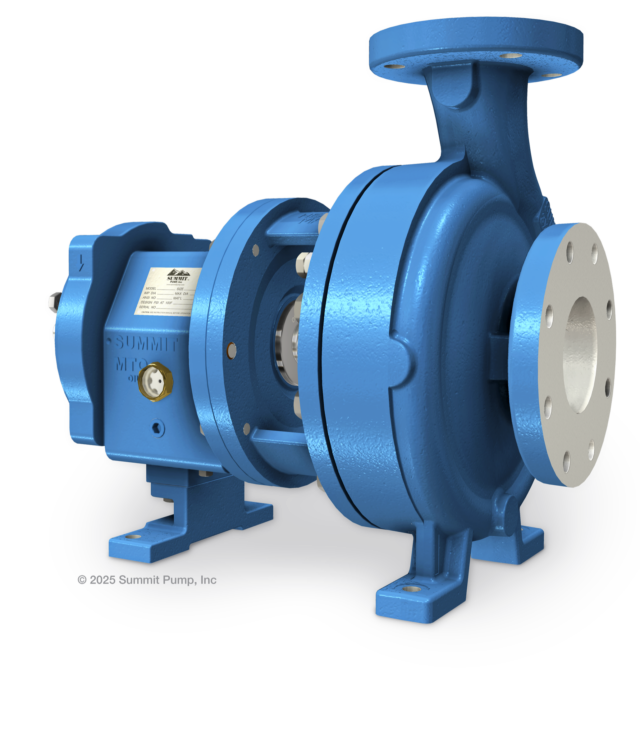

2196 ANSI	Rear Pull-Out Design Efficient Interchangeable Parts Capacities to 6000 GPM Heads to 730 feet Temperatures to 700°F Fully Open Impeller Extra Large Oil Sump Rigid Frame Foot	Finned-Tube Oil Cooler Multiple Stuffing Box Cover Options: Standard Bore, Large Bore, Taper Bore Forever Frame

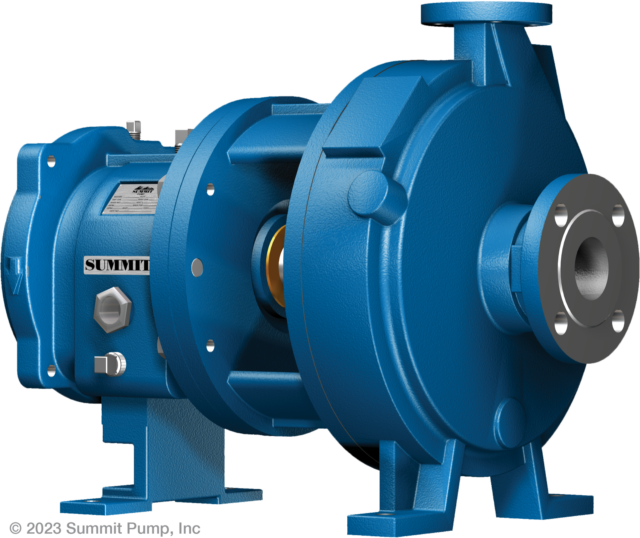

2196LF ANSI	Low Flow High Head Applications Radial Vane Impeller Balance Holes on Impeller Interchangeability with Existing ANSI Pump Rigid Frame Foot	Finned-Tube Oil Cooler Multiple Stuffing Box Cover Options: Standard Bore, Large Bore, Taper Bore Forever Frame

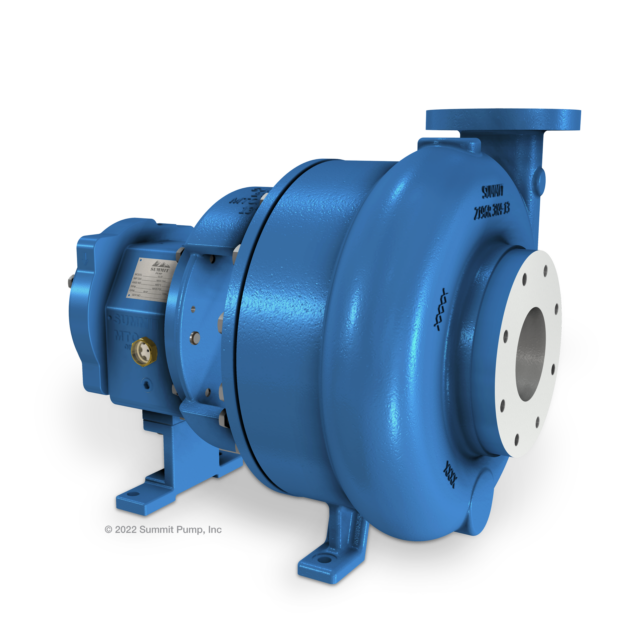

2196R	Utilizes your existing 2196 power end. Handles fibrous and shear sensitive materials Minimizes degradation of solids Available in 5 different sizes and a variety of materials	Finned-Tube Oil Cooler Multiple Stuffing Box Cover Options: Standard Bore, Large Bore, Taper Bore Forever Frame

2196 Brochure	Download
2196LF Brochure	Download
2196R Brochure	Download

Applicable Industries

Building Tech & Institutional Chemical Oil & Gas: In Situ Life Science Oil & Gas: Midstream Mining & Minerals Oil & Gas: Pipeline & Terminal PulpPaper & Forestry Water & Wastewater

Common Applications

Amine Food & Beverage Glycol Lube Oil Petrochemical Produced Water Water Transfer
