Summit VV Series Internal Gear Pumps

The Summit VV Series Pumps (VV40, VV75, VV95) are internal gear positive displacement pumps. These pumps use a rotating internal gear and idler gear configuration to move high-viscosity and abrasive fluids with smooth, non-pulsating flow. Their self-priming capability, ability to handle a wide range of pressures and temperatures, and rugged design make them ideal for challenging industrial applications.

Standard Features Optional Features
VV40
  • High Viscosity Fluid Capabilities
  • High Abrasives Handling Ability
  • Capacities to 470 GPM
  • Pressures to 200 PSI
  • Temperatures -60°F to 800°F
  • External End Clearance Adjustment
  • Self-Priming
  • Available Packed or Mechanically sealed
  • Interchangeable Parts between Specific Sizes
  • Available without Safety Relief Valve
  • Multiple Sealing Options
    • Packed
    • Component Mechanical Seal
    • Cartridge Mechanical Seal
  • Adaptability for Different Configurations

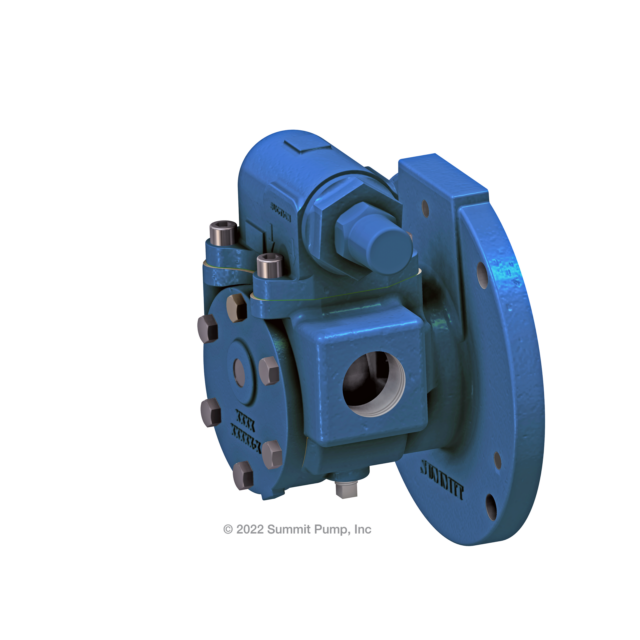

VV75
  • Compact Design is Simple to Mount
  • Reduces Extensive Alignment Time
  • Minimal Moving Parts
  • High Viscosity Fluid Capabilities
  • High Abrasives Handling Ability
  • Capacities to 30 GPM
  • Pressures to 100 PSI
  • Temperatures -60°F to 225°F
  • Self-Priming
  • Available with lip or mechanical seal
  • Interchangeable Parts between Specific Sizes
  • Adjustable Safety Valve Settings (50 PSI standard)
  • Available without Safety Relief Valve
  • Multiple Sealing Options
    • Lip Seal
    • Component Mechanical Seal
  • Adaptability for Different Configurations

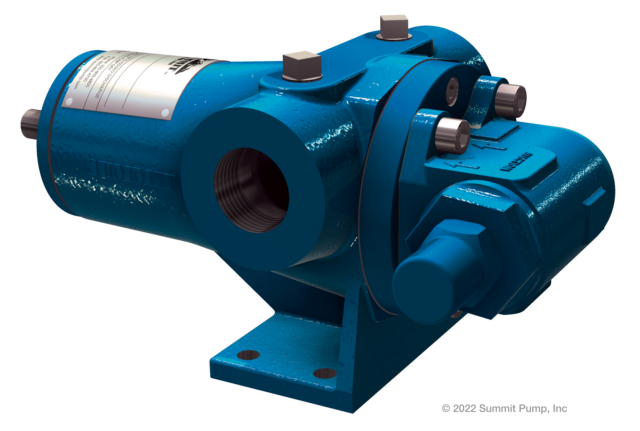

VV95
  • High Viscosity Fluid Capabilities
  • Ability to Operate at Higher Speeds
  • Capacities to 115 GPM
  • Pressures to 250 PSI
  • Temperatures -40°F to 350°F
  • External End Clearance Adjustment
  • Self-Priming
  • Mechanically sealed Behind Rotor, Isolating Bearings from Fluid
  • Interchangeable Parts between Specific Sizes
  • 180 Degree NPT Suction and Discharge Ports
  • Integrated Gauge Ports
  • Available with or without Safety Relief Valve
  • Adaptability for Different Configurations
